Digital measuring instruments

Digital measuring instruments / measuring instruments for measuring:

• DC voltage and direct current (DC)

• AC voltage and alternating current (AC) &Cos φ (power factor)Frequency,

• Frequency, Pulse number, speed, period and runtime

• Temperature
  Standard signals and resistance

Thanks to the low price, the digital measuring instruments / measuring instruments form ideal solutions for cost-effective applications.
Our range includes 4-digit or 5-digit LED displays with one or two lines in different dimensions.

We offer you different sizes such as 48x24mm, 48x48mm, 72x36mm, 72x36mm, 72x72mm, 96x48mm, 96x96mm.Our digital measuring devices are suitable for installation in control panels / panels or for mounting on DIN rails.
In addition to a huge selection of input signals, with alarm functions and various communication interfaces, the digital measuring devices also offer a wide range of power supplies such as.B 85-253Vac/dc or 20-40Vac/dc, 110Vac or 230Vac etc.

We carry fixed or programmable digital measuring instruments in which the following parameters can be set individually:

• Point position
• Measurement
• Display
• Display color individually in three intervals
• Illumination of the unit
• Limit values of displayed exceedances and alarms
• etc.

Below you will find the data sheets and technical information on the digital measuring instruments from Lumel, Frer and Binding Union.

Digital 1-& 3-phase network parameter measuring instruments can be found at:

Measuring instruments for network parameters / network analyzers, network analyzers

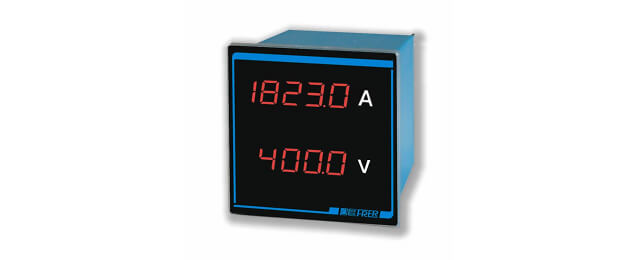

DC voltage and direct current (DC)

Direct DC measurement: +-10mVdc / +-60mVdc / 0-10Vdc to 0-250Vdc / +-100Vdc to +- 600Vdc
Direct DC measurement: 0-20mA / 4-20mA / +-1A to 6A in different gradations
Indirect DC measurement: via Shunt 0-60mVdc / 1-60mVdc

• Panel measuring instruments or DIN rail / DIN rail
• Sizes: 48x24mm, 55x24mm, 48x48mm, 72x36mm, 72x72mm, 96x48mm, 96x96mm, 90x53mm & 96x24mm
• LED display: 3-place 13mm high, 4-digit 20mm high or 5-digit 14mm high, different colors
• Supply: 115/230Vac / 10-30Vac/dc / 20-60Vac/dc / 80-260Vac/dc / partly also 380-415Vac, as well as special voltages
• Partly programmable, depending on the type
• Enclosure protection: IP52 or IP65 class, depending on type
• Special versions: Customer-specific input and output values, with certificate, tropical version, etc.

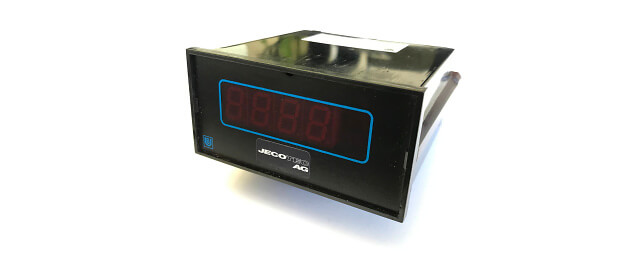

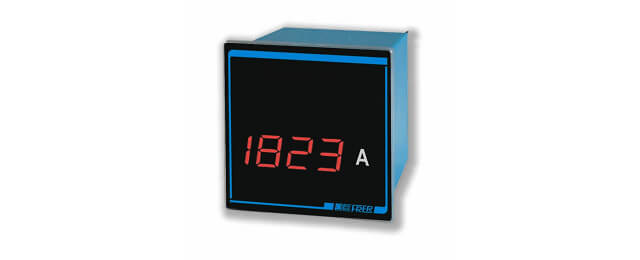

AC voltage and alternating current (AC) &
Cos φ (power factor)

Direct AC voltage measurement: 0-100Vac / 0-250Vac / 0-400Vac / 0-600Vac
Direct AC Measurement: 0-1A/0-5A/0-10A
Power factor measurement: 1- or 3-phase 100-115V & 1A or 5A to 380-440V & 1A or 5A

• Panel measuring instruments or DIN rail
• Sizes: 48x24mm, 55x24mm, 48x48mm, 72x36mm, 72x72mm, 96x48mm, 96x96mm, 90x53mm & 96x24mm
• LED display: 3-place 13mm high, 4-digit 20mm high or 5-digit 14mm high, different colors
• Standard and TRMS measuring instruments
• Supply: 115/230Vac / 10-30Vac/dc / 20-60Vac/dc / 80-260Vac/dc / partly also 380-415Vac, as well as special voltages
• Partly programmable, depending on the type
• Enclosure protection: IP52 or IP65 class, depending on type
• Special versions: Customer-specific input and output values, with certificate, tropical version, etc.

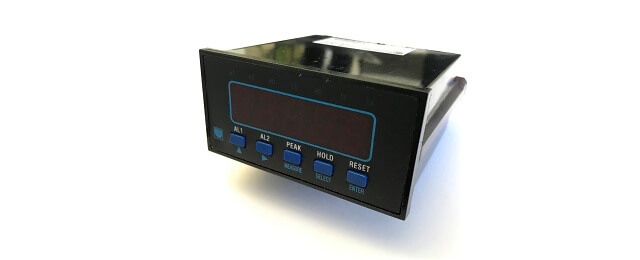

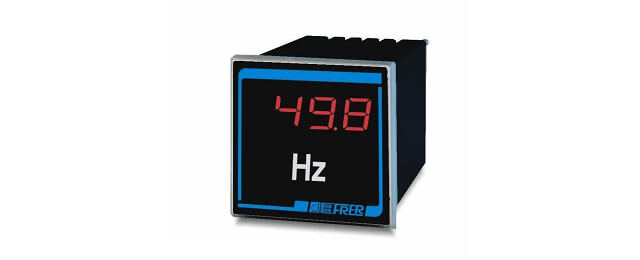

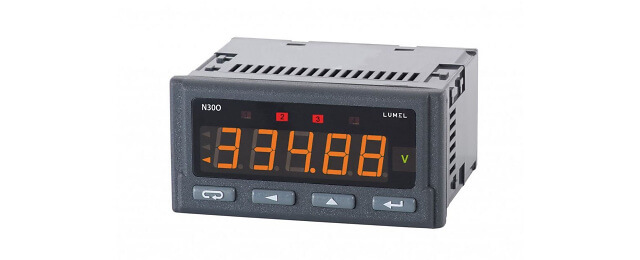

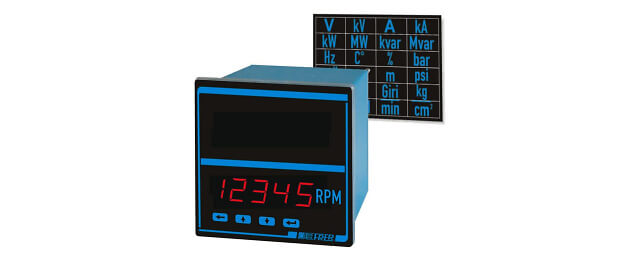

Frequency, pulse number, speed, period and runtime

Frequency: 20-500Hz / 200-2kHz
Pulse number, speed, period, runtime: via pulse signals / voltage / current & resistance

• Panel measuring instruments or DIN rail / DIN rail
• Sizes: 48x24mm, 55x24mm, 48x48mm, 72x36mm, 72x72mm, 96x48mm, 96x96mm, 90x53mm & 96x24mm
• LED display: 3-place 13mm high, 4-digit 20mm high or 5-digit 14mm high, different colors
• Standard and TRMS measuring instruments
• Supply: 115/230Vac / 10-30Vac/dc / 20-60Vac/dc / 80-260Vac/dc / partly also 380-415Vac, as well as special voltages
• Partly programmable, depending on the type
• Enclosure protection: IP52 or IP65 class, depending on type
• Special versions: Customer-specific input and output values, with certificate, tropical version, etc.

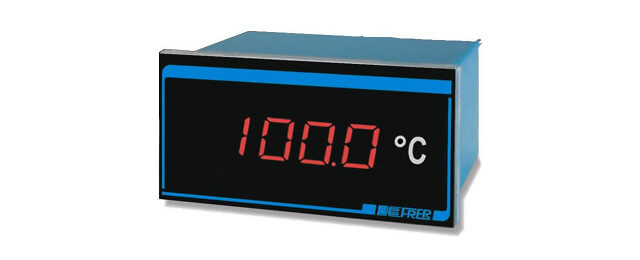

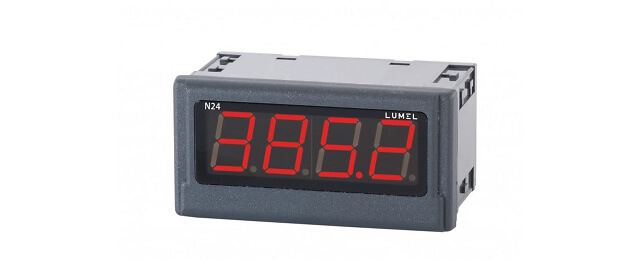

Temperature

Temperature measurement: via temperature sensor Pt100 (2-3 wires), as well as via thermocouples type K & J

• Panel measuring instruments or DIN rail / DIN rail
• Sizes: 48x24mm, 55x24mm, 48x48mm, 7
• 2x36mm, 72x72mm, 96x48mm, 96x96mm, 90x53mm & 96x24mm
• LED display: 3-place 13mm high, 4-digit 20mm high or 5-digit 14mm high, different colors
• Standard and TRMS measuring instruments
• Supply: 115/230Vac / 10-30Vac/dc / 20-60Vac/dc / 80-260Vac/dc / partly also 380-415Vac, as well as special voltages
• Partly programmable, depending on the type
• Enclosure protection: IP52 or IP65 class, depending on type
• Special versions: Customer-specific input and output values, with certificate, tropical version, etc.

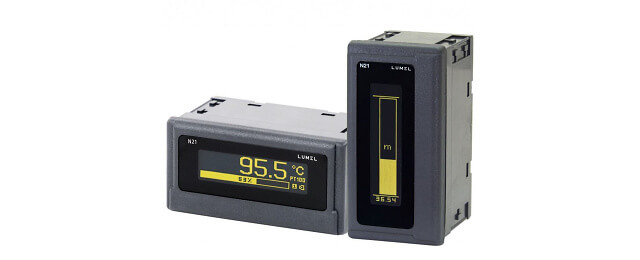

Standard signals and resistance

Standard signals and resistance measurement: via voltage / current & resistance

• Panel measuring instruments (horizontal or vertical) or DIN rail, as well as light bar display
• Sizes: 48x24mm, 55x24mm, 48x48mm, 72x36mm, 72x72mm, 96x48mm, 96x96mm, 90x53mm & 96x24mm
• LED display: 3-place 13mm high, 4-digit 20mm high or 5-digit 14mm high, different colors
• Standard and TRMS measuring instruments
• Supply: 115/230Vac / 10-30Vac/dc / 20-60Vac/dc / 80-260Vac/dc / partly also 380-415Vac, as well as special voltages
• Partly programmable, depending on the type
• Enclosure protection: IP52 or IP65 class, depending on type
• Special versions: Customer-specific input and output values, with certificate, tropical version, etc.
